/ Internal Controller
Premier Submersible Pumps
0.3HP-3Hp
SAMKING Solar Submersible Pumps are engineered
to perform even in the most remote regions. Whether for domestic water, agricultural irrigation, or livestock drinking, the design
ensures steady flow, intense pressure, and low maintenance
to provide long-term durability.
High Performance Functions in Solar Submersible Pump Controller
The SAMKING Solar Submersible Pump Internal Controller is designed with advanced technology to ensure stable, safe, and efficient operation in all conditions. It intelligently manages power flow from the solar panels to the pump motor, optimizing performance and extending system life.
Key High-Performance Functions:
+ MPPT (Maximum Power Point Tracking)
Ensures the solar panels operate at peak efficiency to deliver maximum power output throughout the day.
+ Automatic Power Adjustment
Adjusts pump speed according to sunlight intensity for consistent water flow even on cloudy days.
+ Soft Start Technology
Gradually increases motor speed during startup, preventing water hammer and extending motor life.
+ Comprehensive Protection System
Safeguards against dry-run, over-voltage, under-voltage, over-current, and overheating.
+ Auto-Start & Stop Function
Automatically starts when sunlight is sufficient and stops when power is low or the tank is full.
+ Real-Time Monitoring
Advanced control logic maintains stable operation, improving pump efficiency and reducing maintenance.
These intelligent control functions make SAMKING 0.3HP–3HP Solar Submersible Pumps a reliable and energy-efficient water solution for homes, farms, and remote areas with no grid access.
Smart Design, Simplified Power — Internal Controller
Solar Submersible Well Pumps
Experience the next level of efficiency with SAMKING Solar Submersible Pumps featuring an internal controller. Designed for easy installation and compact performance, these pumps integrate control and motor in one sealed unit — reducing wiring, saving space, and ensuring smooth operation. With intelligent protection and optimized power use, they deliver reliable water flow directly from solar energy, even in remote or off-grid areas.
/ Technical Snapshot
0.3-3hp Premier
Well Pump
Internal Controller
Maximum Power
2200 kw
Maximum Lift
185 m
Maximum Flow
51.6m³/h
Operating Voltage
60-450 VDC, 150-240 VAC
Motor Type
Water-filled BLDC / PMSM
Certification
ISO / CE / RoHS Certified
/ Product Overview
What is a SAMKING Premier
Solar Submersible Well Pump
(0.3HP–3HP)?
A SAMKING Premier Solar Submersible Well Pump is an advanced, Solar water pumping system designed to deliver dependable performance using only solar energy. Powered by a high-efficiency BLDC motor and controlled through smart solar technology, it draws water directly from deep wells, boreholes, ponds, or tanks — without relying on grid electricity or fuel.
Available in 0.3HP to 3HP models, these pumps combine high lift, strong water flow, and intelligent control to provide a sustainable and cost-effective water solution for homes, farms, and remote areas. Engineered for durability, low maintenance, and energy efficiency, SAMKING Premier Pumps ensure reliable water access — wherever it’s needed most.
These pumps are ideal for:
+ Domestic water supply in homes and communities.
+ Agricultural irrigation for crops, greenhouses, and farms.
+ Livestock drinking water systems in rural areas.
+ Deep wells and boreholes for continuous water extraction.
Each SAMKING pump is designed with efficiency, reliability,
and low maintenance at its core.
/ Trust, Performance, Simplicity /
Why Choose Premier Internal
Solar Water Submersible Well Pumps Controller?
SAMKING Premier Solar Submersible Pumps with built-in internal controllers offer a smarter, more compact, and efficient design for off-grid water systems. The integrated controller simplifies installation and eliminates the need for an external control box, reducing wiring, space, and setup time.
Key Advantages Premier Solar Submersible
Well Pumps with Internal Controller:
+ Simpler installation
Integrated motor and controller design makes setup quick and easy.
+ Optimized Efficiency
Intelligent power management adjusts pump speed for maximum water flow even under low sunlight.
+ Enhanced Protection
Built-in safeguards prevent dry-run, over-voltage, under-voltage, and overload damage.
+ Ideal for Remote Use
Perfect for homes, farms, and wells in areas without access to grid electricity.
With SAMKING Premier Internal Controller Pumps, you get a complete solar-powered water solution that’s easy to install, highly efficient, and built for long-term, dependable performance.
Internal Controller Solar
Pumps 0.3HP to 3 HP
An internal controller is a compact electronic device integrated and sealed within the submersible
pump motor housing.

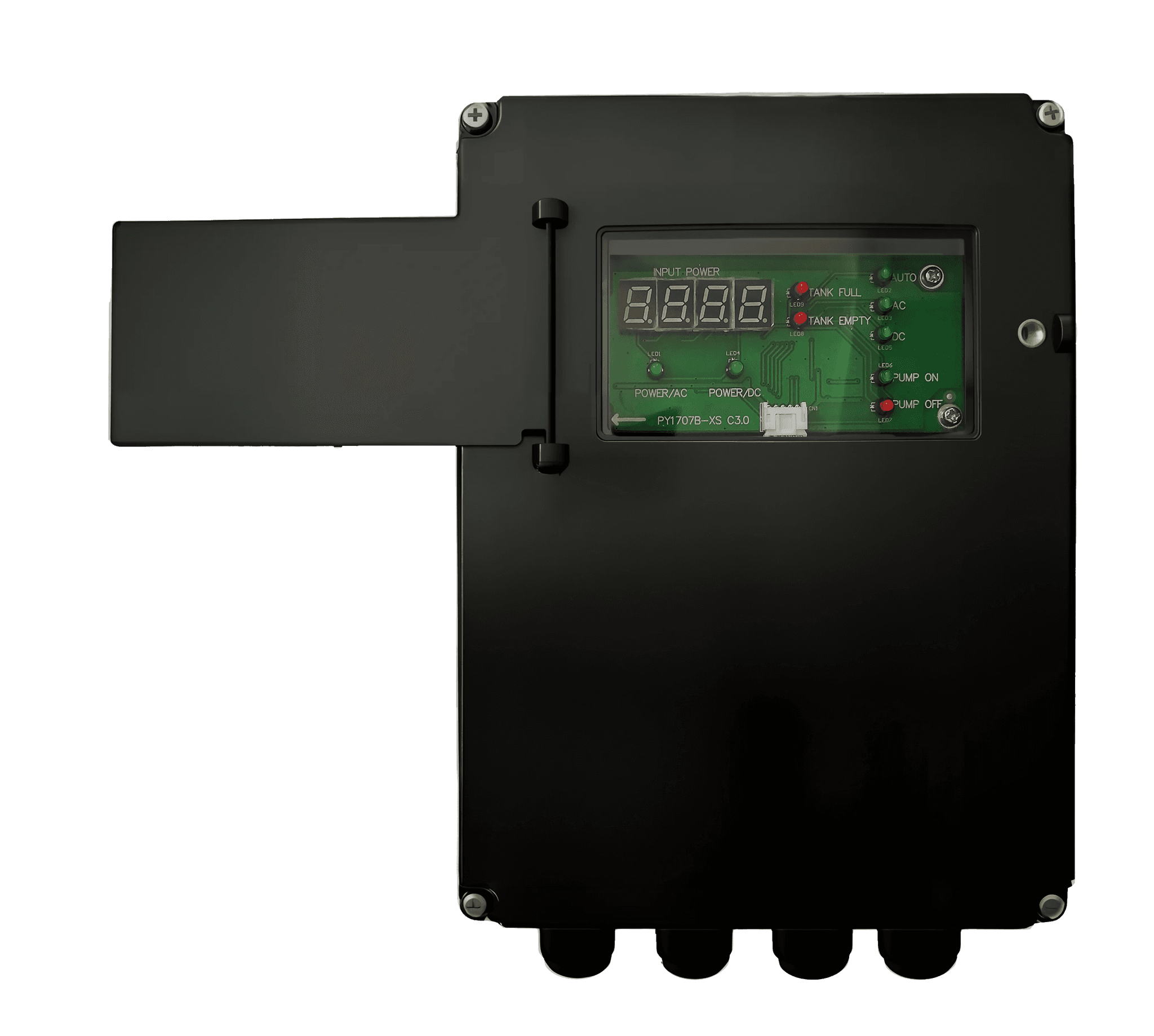

Monitor-SK3000
(Optional)
Characteristics of internal controller
solar pumps 0.3Hp-3Hp
+ Simpler installation
Because there is no separate control box to install and
wire, pumps with internal controllers offer a simpler installation process with a single power wire.
+ Lower upfront cost
Pumps with internal controllers are often less expensive
to purchase initially because they do not require the additional control box hardware.
+ Complex maintenance
When the controller fails, a technician must pull the
entire pump out of the well to service or replace it. This is a more complex and costly procedure.
+ Vulnerability to heat
The internal controller's electronics are submerged with
the motor. While water cools them, the components still run hotter than those controlled externally.
/ Pump Advantages
Advantages of Solar Submersible
Pumps Internal Controller
Feature
/ High-efficiency BLDC motor:
/ Encapsulated water-filled motor:
/ Wide voltage & head range:
/ Smart controller with protections:
/ Stainless steel body & corrosion-resistant parts:
/ Fully automatic, no operator needed:
Benefit to You
+ 15–20% better energy use, lower solar panel cost
+ No oil leaks, longer life, safer operation
+ Works with diverse well depths and solar setups
+ Dry-run, over-current, over-voltage, and temperature safeguards
+ Durable in harsh environments
+ Set and forget — minimal maintenance
/ Motor of SAMKING
Permanent Magnet
BLDC Motor
● High-efficiency synchronous design improves performance by up to 20%.
● Reduces energy consumption and minimises the number of solar panels needed.
● Long service life with stable power output and soft-start control.
Advanced Motor & Winding System
● Magnet material of 40SH aluminum iron boron for superior temperature resistance up to 150°C.
● Cold-rolled silicon steel sheets for stator and rotor, ensuring minimal loss and vibration.
● 180°C copper enameled wire with insulation grade F.
/ Premium Quality
Superior Material
Construction
● 304 Stainless Steel Shaft prevents breakage and corrosion.
● 304 Stainless Steel or Copper Components for outlet, connection, and cylinder.
● Silicon Carbide + Graphite Mechanical Seal ensures high reliability and extended service life.
● Japanese NSK Bearings for reduced friction and improved axial load capacity.
● Double Bearing Rotor Support provides greater stability under deep-lift conditions.
/ Relevant Models
Hot-Selling Solar Submersible
Pump Series
DC Brushless Solar Submersible Pump
● Operates directly from solar power.
● Ideal for areas without grid connectivity.
● High-efficiency BLDC motor for consistent performance.
● Applications: Domestic water, irrigation, livestock supply.
● Max Lift: [158m] | Max Flow: [21.1m³/h] | Power: [1.3HP/1500W]
● Relevant Models: 3SPW1-11P, 4SPW2-7P
High Voltage DC Solar Submersible Pump
Single-Phase AC/DC Hybrid Submersible Pump
● Automatically switches between solar and grid when sunlight is low.
● Supports both AC 90–240V and DC input.
● Ensures continuous water supply in all weather conditions.
● Applications: Farms, households, institutions.
● Max Lift: [185m] | Max Flow: [51.6m³/h] | Power: [3HP/2200W]
● Relevant Models: 4SP8-7, 4SP8-5
Three-Phase AC/DC Hybrid Submersible Pump
● Designed for high-demand users and deep boreholes.
● Automatic switching between solar and grid, prioritizing solar.
● High lift, large flow, and heavy-duty construction.
● Applications: Agricultural irrigation, community water systems, industrial.
● Max Lift: [400m] | Max Flow: [115m³/h] | Power: [30HP/22000W]
● Relevant Models: A/D-4SPW6-15P, A/D-4SPW14-8
/ Quick Guide
Components of Solar
Motor Pumps
+ Sunlight falls on solar PV panels
Photons present in the sunlight displace electrons present in the solar cells that solar panels are made of. This flow of electrons produces an electric current in the form of DC power.
+ Solar electricity makes the water pump (optional)
The DC electricity is sent to a controller (and an inverter if needed), which powers the motor. For DC motors, the power flows directly. For AC motors, a solar inverter converts the DC to AC.
+ The solar pump starts drawing water
The motor drives a pump (surface or submersible) that extracts water from a source such as a well, river, or tank reservoir.
+ Extracted water is delivered to the end destination
The water drawn by the solar pump is transported through pipes to its end destination, which could be irrigating vast crop fields, supplying drinking water to homes, and delivering water for livestock watering.
/ Key Benefies
Benefits of SAMKING Solar Pump Kits
Zero Infrastructure
Install anywhere — even off-grid. No wiring, transformers, or grid dependency.
Low Operating Costs
Powered entirely by solar energy — zero fuel and near-zero maintenance.
Multi-Source Water
Draws water from wells, ponds, lakes, or tanks. even at low depths (≥1 m).
24-Hour Supply
Pairing with storage tanks ensures round-the-clock water availability.
Effortless & Secure
Smart controller handles auto start/stop, speed regulation / protection.
/ Check List
Installation & Commissioning
● Provide safety cable (stainless steel) & recommended poly pipe.
● Confirm borehole/well diameter and safe drop length.
● Mount the external controller in a shaded weatherproof box (IP65 recommended).
● Connect solar panels per controller voltage/current recommendations.
● Do a dry run and verify the controller display values (voltage/amp/watts).
● Connect solar panels per controller voltage/current recommendations.
/ Application /
Domestic Water Supply
Perfect for homes, villages, schools, and institutions that need a consistent and clean water source.
Agricultural Irrigation
Ideal for drip, sprinkler, or flood irrigation systems. Maintain crop health while cutting fuel costs.
Watering Livestocks
Reliable source for cattle, poultry, and dairy farms — even in remote grazing areas.
Community & Borehole
Used by NGOs, governments, and private enterprises to power rural water access programs.
