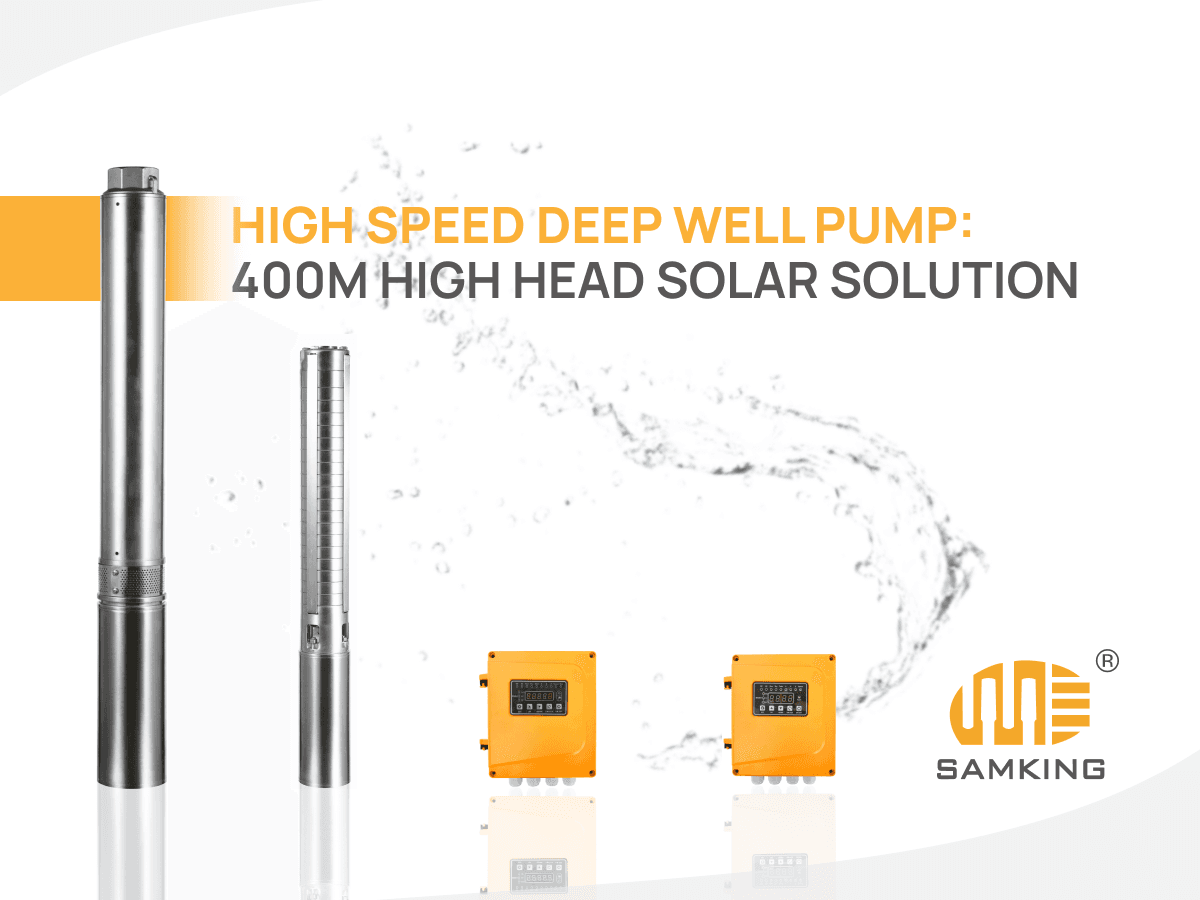

High Speed Deep Well Pump: 400m High Head Solar Solution

In deep well and high head water extraction scenarios, insufficient lift, excessive energy consumption, and lack of grid power in remote areas have long been industry pain points. Centered on BLDC/PMSM high-speed permanent magnet motors, SAMKING High Speed Deep Well Pumps are equipped with VFD variable frequency drives and solar-compatible systems, focusing on solving efficient, energy-saving and off-grid water extraction problems for 400-meter-deep wells, becoming a benchmark solution in the field of high head submersible pumps.

400m High Head Breakthrough: The Core Capability of Deep Well Water Extraction

The core threshold for deep well water extraction is stable high head output. SAMKING High Speed Deep Well Pumps thoroughly overcome this challenge through hydraulic design.

Relying on a multi-stage impeller hydraulic system, CNC-precision machined impellers and diffusers boost pressure stage by stage, delivering a stable maximum 400m head and a flow rate up to 200m³/h, perfectly matching the strict requirements of deep well and high head water conveyance.

Meanwhile, the anti-cavitation suction design reduces NPSH demands, ensuring stable operation in low-pressure environments deep underground, eliminating cavitation damage and guaranteeing long-term high head operation.

BLDC/PMSM High-Speed Permanent Magnet: The Core Energy-Saving Technology of Deep Well Pumps

Different from traditional deep well pumps, SAMKING adopts high-speed Permanent Magnet Synchronous Motors (PMSM)/Brushless DC Motors (BLDC), achieving dual advantages of high power density + ultra-low energy consumption via high rotating speed.

1. High Efficiency & Energy Saving: The high specific speed design delivers far higher efficiency than conventional asynchronous motors under all working conditions, significantly reducing energy consumption per cubic meter of water and directly cutting electricity costs and solar investment.

2. Water-Filled Cooling: The motor adopts water circulation cooling, paired with built-in thermal sensors to maintain stable temperature under continuous heavy loads and extend the service life of core components.

3. Small Diameter for Cost Saving: The compact high-speed motor reduces well diameter requirements, directly cutting down drilling and installation costs.

VFD + MPPT Variable Frequency Drive: Direct Solar Drive for Off-Grid Water Extraction

As a Solar-Ready Deep Well Pump, SAMKING is equipped with a surface Variable Frequency Drive (VFD) + MPPT hybrid controller, completely solving water extraction problems in remote off-grid areas.

• Direct DC Solar Drive: The DC-coupled VFD directly connects to high-voltage DC from solar arrays, eliminating inverter loss and ensuring stable operation of off-grid deep wells.

• Precise Variable Frequency Control: Soft start/stop, PID constant pressure regulation reduce water hammer and mechanical wear, and support remote monitoring.

• Hybrid Power Supply: Solar + energy storage/grid power complementation maintains stable flow even under fluctuating sunlight or at night.

Full-Protection Durable Design: Long-Term Reliable Operation in Deep Water

Deep well water is complex and the pump works under long-term submersion, so durability is critical. SAMKING High Speed Deep Well Pumps use 304/316 stainless steel + duplex steel materials, which are corrosion and wear resistant, adapting to saline and mineralized groundwater.

With dual mechanical seals + leak detection, IP68 submersible protection, and all-round protection against dry running, overcurrent, overheating and phase loss, the pump can serve for 10-20 years with regular maintenance, reducing later operation and maintenance costs.

Conclusion

SAMKING High Speed Deep Well Pump takes high head, low energy consumption and solar compatibility as its core advantages, accurately solving the pain points of water extraction in deep wells, high head scenarios and remote areas. It is an ideal choice for municipal water supply, agricultural irrigation, industrial water intake and mine dewatering.

We redefine the standard of deep well water extraction with permanent magnet variable frequency technology, making 400m deep well water extraction more efficient, energy-saving and flexible.
